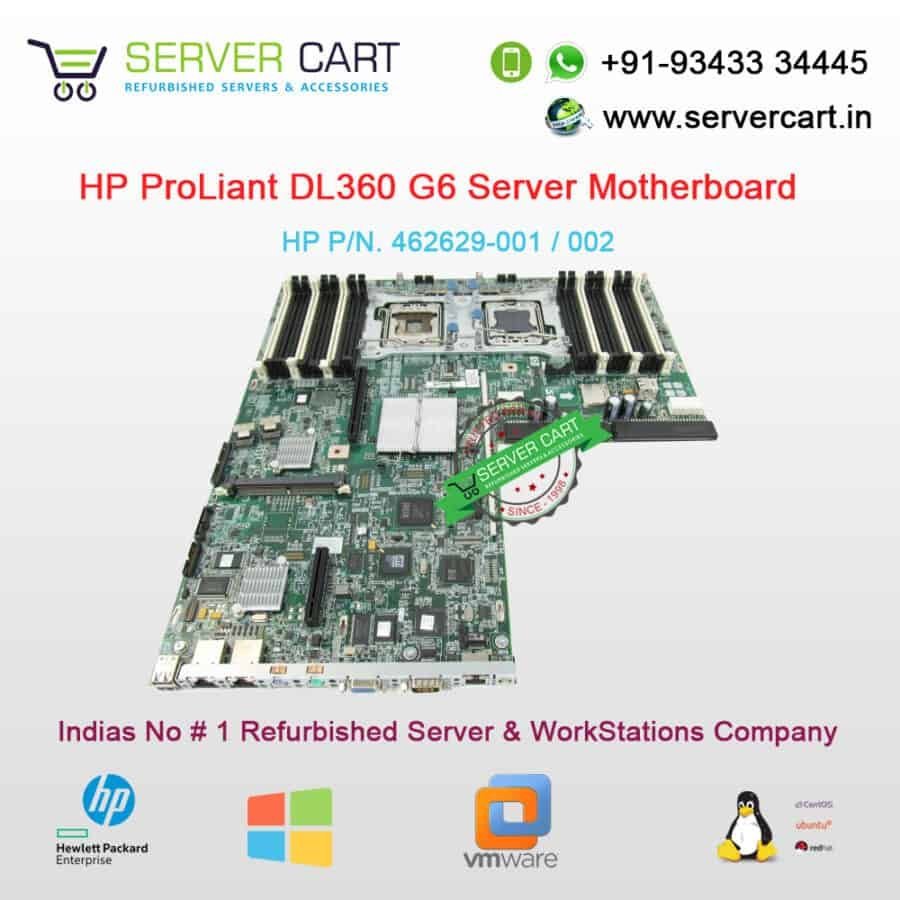

HP ProLiant DL360 G6 Motherboard P/N: 462629-001, 462629-002

HP DL360 G6 Motherboard

To avoid damage to the processor:

• Handle the processor only by the edges.
• Do not touch the bottom of the processor, especially the contact area

 HP DL360 G6 Motherboard Removal:

• Power down the server.
• Remove the server from the rack.
• Remove the access panel.
• Remove all hard drives.
• Remove all power supplies.
• If installed, remove the BBWC battery pack or the FBWC capacitor pack.
• Remove the air baffle.
• Remove the PCI riser board assembly.
• Remove all fan modules.
• Remove the fan blank.

• Disconnect all cables connected to the system board.
• Remove the cache module.
• Remove the optional hard drive backplane.
• Remove the hard drive backplane.
• Remove all DIMMs.
• Remove the heatsink.
• Open the processor retaining latch and the processor socket retaining bracket.
• Using your fingers, remove the processor from the failed system board.
• Remove the failed system board.

To replace the system board:

• Align and install the spare system board in the server before installing the processor.
• Prepare the processor socket on the spare system board:
  a. Open the processor retaining latch and the processor socket retaining bracket
  b. Remove the processor socket protective cover.
• Install the processor socket cover onto the processor socket of the failed system board.
• Install the processor on the spare system board.
• Close the processor retaining latch and the processor socket retaining bracket
• Clean the old thermal grease from the heatsink and the top of the processor with the alcohol swab. Allow the alcohol to evaporate before continuing.
• Apply all the grease to the top of the processor in one of the following patterns to ensure even
  distribution.

• Install the heatsink.
• Install all components removed from the failed system board.
• Install the hard drives.
• Install all power supplies.
• Install the air baffle.
• If removed, install the BBWC battery pack or the FBWC capacitor pack.
• Install the access panel.
• Slide the server into the rack.
• Power up the server

Six-Core Processors

Intel Xeon Processor X5670
Intel Xeon Processor X5660
Intel Xeon Processor X5650

Quad-Core Processors

Intel Xeon Processor X5570
Intel Xeon Processor X5560
Intel Xeon Processor X5550
Intel Xeon Processor E5540

Intel Xeon Processor L5530
Intel Xeon Processor E5530
Intel Xeon Processor L5520
Intel Xeon Processor E5520
Intel Xeon Processor L5506
Intel Xeon Processor E5506
Intel Xeon Processor E5504

Dual-Core Processors

Intel Xeon Processor E5502
