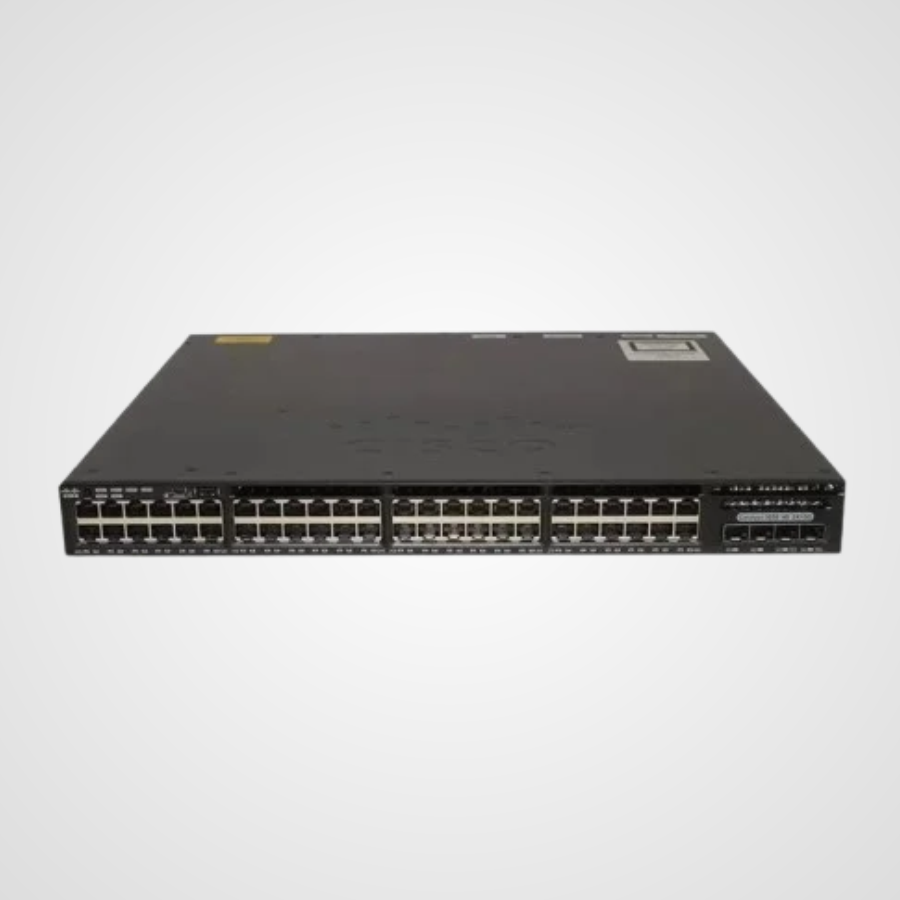

Cisco Catalyst 3650 48 Poe+ 4x10G Switch

Cisco Catalyst 3650 48 Poe+ 4x10G Switch Features:

Converged Wired and Wireless Networking 3650-48FQ-L Switch

The Cisco Catalyst 3650-48FQ-L Switch seamlessly integrates wired and wireless capabilities, making it ideal for enterprise networks. For instance, it supports up to 50 access points and 1000 wireless clients per switch or stack. Furthermore, Cisco StackWise®-160 technology delivers a 160 Gbps stacking bandwidth, allowing up to nine switches to be stacked. Consequently, this simplifies management and enhances scalability. Additionally, the Cisco Unified Access Data Plane (UADP) ASIC ensures consistent policy enforcement, application visibility, and optimized performance.

Port Configuration and PoE+ Support

Equipped with 48 Gigabit Ethernet ports (10/100/1000 Mbps), the WS-C3650-48FQ-L supports full IEEE 802.3at PoE+, providing up to 30W per port. As a result, it powers devices like IP phones, cameras, and access points with a PoE budget of up to 775W (with a 1025WAC power supply). Moreover, it includes 4×10 Gigabit Ethernet SFP+ uplinks, ensuring high-speed connectivity to core networks. Therefore, it effectively supports bandwidth-intensive applications.

High Performance and Scalability

The switch offers a switching capacity of 176 Gbps and a forwarding rate of 130.95 Mpps. In addition, it supports 32,000 MAC addresses, up to 255 VLANs (LAN Base), and 24,000 IPv4 routes. With 4GB DRAM and 2GB Flash, it handles demanding tasks efficiently. Consequently, it is well-suited for enterprise-grade deployments and future upgrades.

Networking and Security Features

Running on the LAN Base feature set, the WS-C3650-48FQ-L supports basic Layer 3 functionality and advanced QoS for traffic prioritization. Meanwhile, security features like Cisco TrustSec, 802.1X authentication, and MACsec encryption protect data and access. For example, these capabilities ensure secure, role-based network access for enterprise environments.

Reliability, Management, and Efficiency

The switch includes modular, redundant fans and power supplies for high availability. Additionally, Cisco DNA Center compatibility enables centralized management and automation. For instance, EnergyWise technology reduces power consumption, lowering costs. Meanwhile, its 1U form factor (17.5 x 17.6 x 1.7 in, ~16 lbs) fits various deployments. Furthermore, it complies with standards like UL 60950-1 and FCC Part 15 Class A.

In summary, the Cisco Catalyst 3650-48FQ-L is a powerful, scalable switch for enterprises needing reliable wired-wireless networking.
