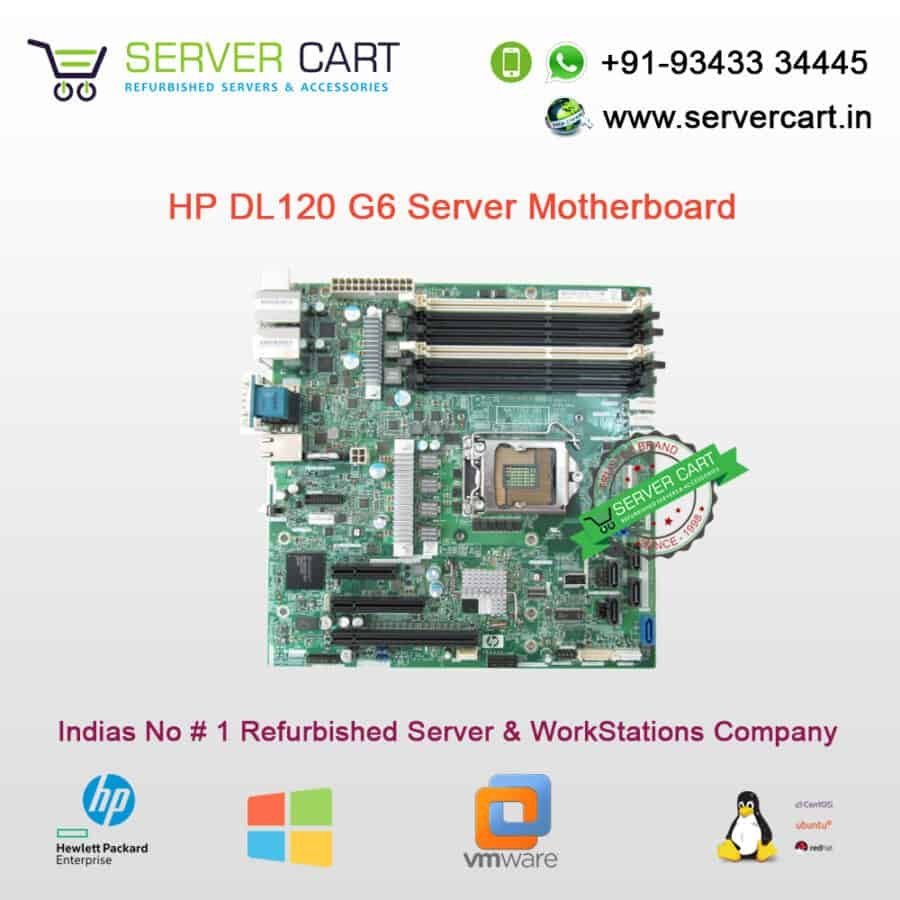

HP ProLiant DL120 G6 Server Motherboard PN: 531560-001

Original price was: ₹12,000.00.Current price is: ₹8,000.00.

  • Product: HP ProLiant DL120 G6 Server Motherboard
  • Category: Refurbished
  • Compatible Model: HP DL120 G6 Server
    30 Days Hardware Warranty
    Exclusive of Taxes***
Categories: ,


HP DL120 G6 Motherboard

installing or replacing a TPM, observe the following guidelines:
• Do not remove an installed TPM. Once installed, the TPM becomes a permanent part of the system board.
• When installing or replacing hardware. HP service providers cannot enable the TPM or the encryption technology. For security reasons. only the customer can enable these features.
• Returning a system board for service replacement. do not remove the TPM from the system board. When requested. HP Service provides a TPM with the spare system board.

To remove the system board:

  •  Remove the top cover.
  •  Loose the nine screws that secure the system board to the chassis.
  • Slide the system board back, up and out of the chassis. Remove the system board from the chassis.

To reinstall the system board:

  • Align the system board I/O connectors to their openings and slide the system board into place.
    The nine screw holes on the chassis should align with the system board.
  • Fasten the nine screws on the system board to secure the system board to the chassis.
• HP DL120 G6 Motherboard Latest quad-core Intel Xeon 3400 series processors provide better and faster system performance.
• Support for DDR3 1066/1333MHz unbuffered ECC memory offers approximately 10% performance gain over DDR2 and support for DDR3 800/1066/1333 registered memory.
• Support for PCI -e Gen2 x16 link provides better flexibility to deploy the PCIe option.
• Standard power supply with 80% efficiency helps reduce overall operational costs.
• Optional TPM 1.2 support offers better data security with hardware-based encryption and authentication.
• Integrated remote management with LO100i provides standard remote management capability with optional advanced features.
• Variable cost Intel Xeon Quad-Core processors enable you to pick the right processor based on workload requirements
• Server supports large form factor SATA and SAS hard disk drives that combine low-cost benefits, and high capacity. high performance and high reliability, all at the same time.
• HP Embedded 6 Port SATA Controller and an array of SAS HBAs and Smart Array Controllers.
• Scalable performance with six DIMM sockets with support for buffered and registered ECC memory.
