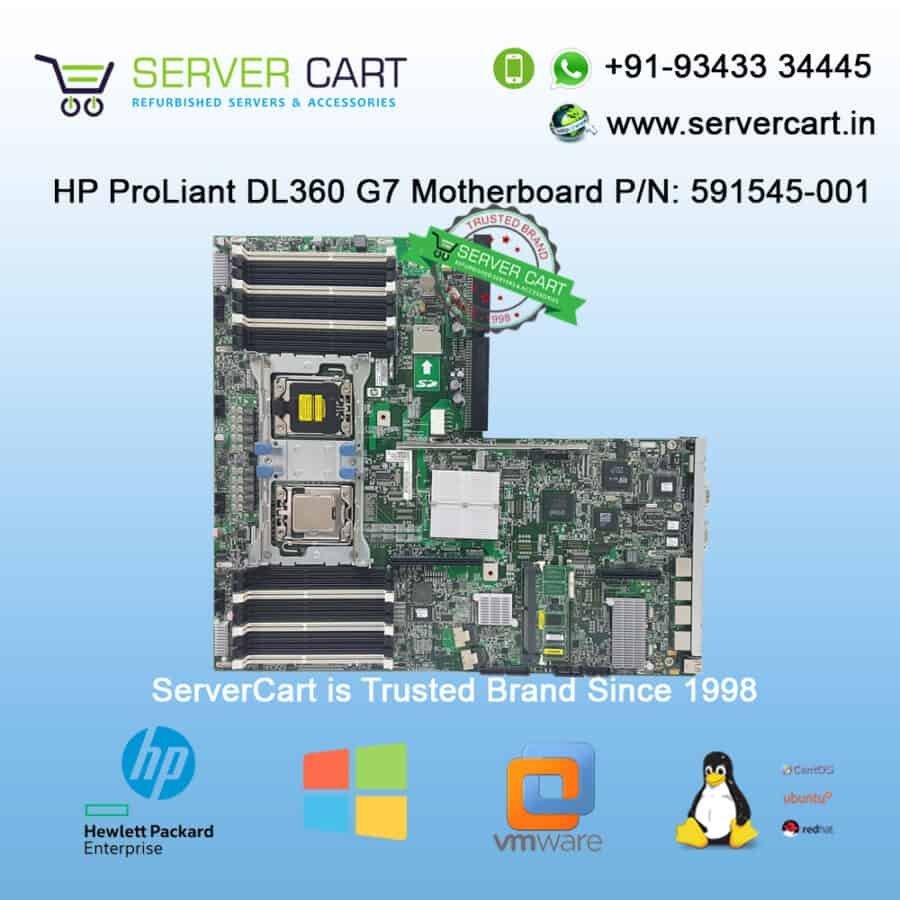

HP ProLiant DL360 G7 Motherboard P/N: 591545-001

19,900.00

  • Product:  HP DL360 G7 Server Motherboard
  • Category: Refurbished
  • Compatible Model:  HP DL360 G7 Server
  • Part Number: 591545-001
  • Processor Socket: LGA 1366/Socket B
  • Compatible CPU: Intel
  • Memory Type: DDR3 SDRAM
    30 Days Hardware Warranty
    Exclusive of Taxes***
Categories: ,
Description

Description

HP DL360 G7 Motherboard

To avoid damage to the processor:
• Handle the processor only by the edges.
• Do not touch the bottom of the processor, especially the contact area

 HP DL360 G7 Motherboard Removal:

  • Power down the server.
  • Remove the server from the rack.
  • Remove the access panel.
  • Remove all hard drives.
  • Remove all power supplies.
  • If installed, remove the BBWC battery pack or the FBWC capacitor pack.
  • Remove the air baffle.
  • Remove the PCI riser board assembly.
  • Remove all fan modules.
  • Remove the fan blank.
  • Disconnect all cables connected to the system board.
  • Remove the cache module.
  • Remove the optional hard drive backplane.
  • Remove the hard drive backplane.
  • Remove all DIMMs.
  • Remove the heatsink.
  • Open the processor retaining latch and the processor socket retaining bracket.
  • Using your fingers, remove the processor from the failed system board.
  • Remove the failed system board.

To replace the system board:

  • Align and install the spare system board in the server before installing the processor.
  • Prepare the processor socket on the spare system board:
    a. Open the processor retaining latch and the processor socket retaining bracket
    b. Remove the processor socket protective cover.
  • Install the processor socket cover onto the processor socket of the failed system board.
  • Install the processor on the spare system board.
  • Close the processor retaining latch and the processor socket retaining bracket
  • Clean the old thermal grease from the heatsink and the top of the processor with the alcohol swab. Allow the alcohol to evaporate before continuing.
  • Apply all the grease to the top of the processor in one of the following patterns to ensure even
    distribution.
  • Install the heatsink.
  • Install all components removed from the failed system board.
  • Install the hard drives.
  • Install all power supplies.
  • Install the air baffle.
  • If removed, install the BBWC battery pack or the FBWC capacitor pack.
  • Install the access panel.
  • Slide the server into the rack.
  • Power up the server
