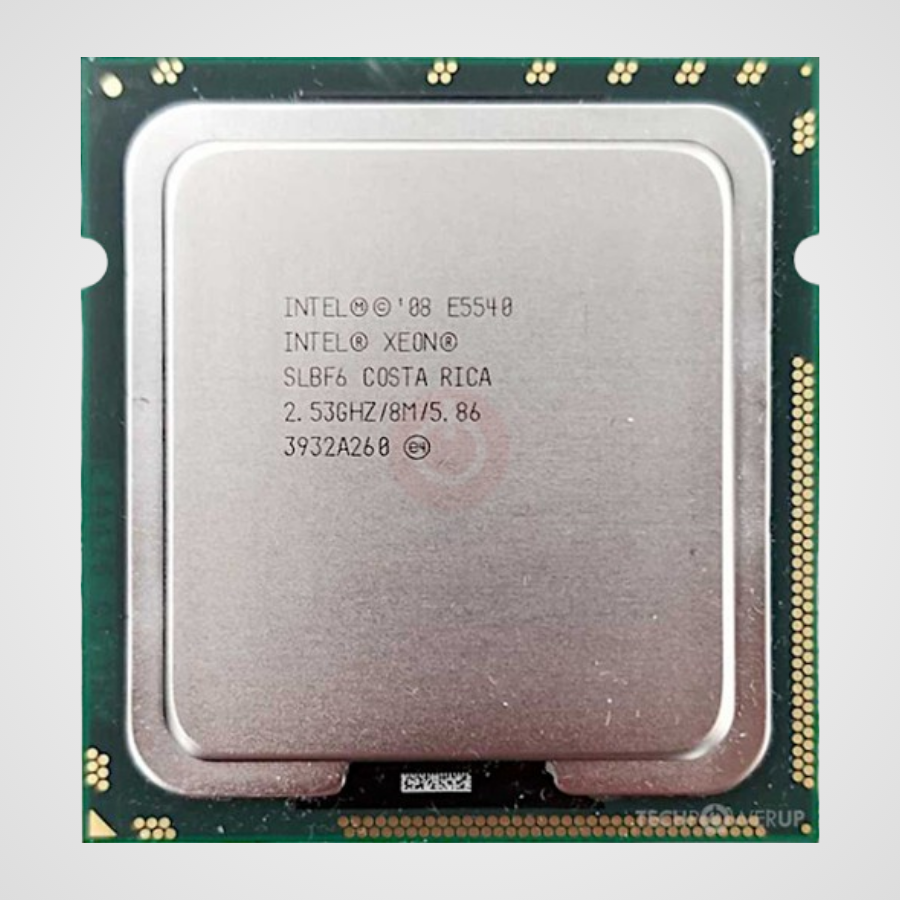

Intel Xeon E5540 Quad Core Processor


  • Product: Intel Xeon E5540 Processor
  • Number of Cores: 4
  • Number of Threads: 8
  • Clock Speed & L2 Cache: 2.53 GHz, 8M Cache
  • Sockets Supported: FCLGA1366
  • Memory Type: DDR3 800/1066
  • Bus Speed: 5.86 GT/s
  • Category: Refurbished
    1 Year Hardware Warranty
    Exclusive of Taxes Additional Shipping***


Intel Xeon E5540 Processor

# of Cores – 4
# of Threads – 8
Processor Base Frequency – 2.53 GHz
Max Turbo Frequency – 2.80 GHz
Cache – 8 MB Intel Smart Cache
Bus Speed – 5.86 GT/s
# of QPI Links – 2
TDP – 80 W
VID Voltage Range – 0.75V -1.35V


Product Collection – Legacy Intel Xeon Processors
Code Name – Products formerly Nehalem EP
Vertical Segment – Server
Processor Number – E5540
Status – Discontinued
Launch Date – Q1’09
Lithography – 45 nm
Use Conditions – Server/Enterprise

Memory Specifications

Max Memory Size (dependent on memory type) – 144 GB
Memory Types – DDR3 800/1066
Max # of Memory Channels – 3
Max Memory Bandwidth – 25.6 GB/s
Physical Address Extensions – 40-bit
ECC Memory Supported ‡ – Yes

CPU Specifications

# of Cores – 4
# of Threads – 8
Processor Base Frequency – 2.53 GHz
Max Turbo Frequency – 2.80 GHz
Cache – 8 MB Intel Smart Cache
Bus Speed – 5.86 GT/s
# of QPI Links – 2
TDP – 80 W
VID Voltage Range – 0.75V -1.35V

Intel Xeon E5540 Processor

Intel Xeon E5540 Processor provides a foundation for a fully adaptable IT environment. The architecture of these processors is designed with innovative features that adapt performance to software and business needs, help energy consumption for optimum performance and efficiency, and enable virtualization strategies that help your IT infrastructure adapt more quickly to your business needs.

HP ProLiant Servers & HP Workstations

Rack Servers DL series:-

HP ProLiant DL360
HP ProLiant DL360 G5
HP ProLiant DL360 G6
HP ProLiant DL360 G7
HP ProLiant DL380 G6
HP ProLiant DL380 G7
HP ProLiant DL160 G6
HP ProLiant DL180 G6
HP ProLiant DL370 G6
HP ProLiant DL320 G6
HP ProLiant DL170E G6

Tower Servers ML Series:-

HP ProLiant ML350 G6
HP ProLiant ML350 G7
HP ProLiant ML370 G6
HP ProLiant ML330 G6

Blade Servers BL Series:-

HP ProLiant BL460C G6
HP ProLiant BL460C G7
HP ProLiant BL490C G6

Blade Servers SL Series:-

HP ProLiant SL170S G6
HP ProLiant SL390S G7


HP Z400
HP Z600
HP Z800

Dell PowerEdge Servers & Dell Workstations

Rack Servers R Series :-

Dell PowerEdge R410
Dell PowerEdge R510
Dell PowerEdge R610
Dell PowerEdge R710

Rack Servers C Series :-

Dell PowerEdge C1100
Dell PowerEdge C2100
Dell PowerEdge C6100

Tower Servers T Series :-

Dell PowerEdge T410
Dell PowerEdge T610
Dell PowerEdge T710

Blade Servers M Series :-

Dell PowerEdge M610
Dell PowerEdge M710

Workstations :-

Dell Precision T3500
Dell Precision T5500
Dell Precision T7500

IBM Servers & IBM Workstations

Rack Servers X Series :-

IBM X3650 M2
IBM X3650 M3
IBM X3630 M3
IBM X3550 M2
IBM X3550 M3
IBM X3400 M2
IBM X3400 M3
IBM X3500 M2
IBM X3500 M3

ThinkStation :-



Deliver the product within 3-4 business days. We do not delay. You have the sole right to inquire and keep track of the product delivery status. We send acknowledgment after delivery in form of email or WhatsApp message. Since our headquarters warehouse is located in Hyderabad And Bangalore. local customers can even they can visit our store. and get the delivery in less time as well if required.

Best Price

Looking for the best servers or workstations at a low price? if yes then servercart will help you with the best Server Parts. at low prices and our products will be quality products at attractive prices. We offer refurbished Server Parts at a low price guarantee in the market compared to other dealers. ServerCart is the most trusted brand in Servers and Workstation dealers since 1998.
